Column endoscopic Fuse
The column endoscopic Fuse constitutes the technological heart of the most innovative endoscopic vision system on the market today, for the upper and lower gastrointestinal tracts.
The system Fuse has multiple viewing options: 160 ° (standard) to 245 ° or 330 ° for videogastroscopio for videocolonscopio (wide-angle). The wide angles (245 ° or 330 °) includes standard front sight at 160 degrees. The operator can change the display mode from 160 ° to 245 ° / 330 ° or 330 ° / 245 ° to 160 ° by selecting the appropriate monitor using the interface processor Fuse Box.

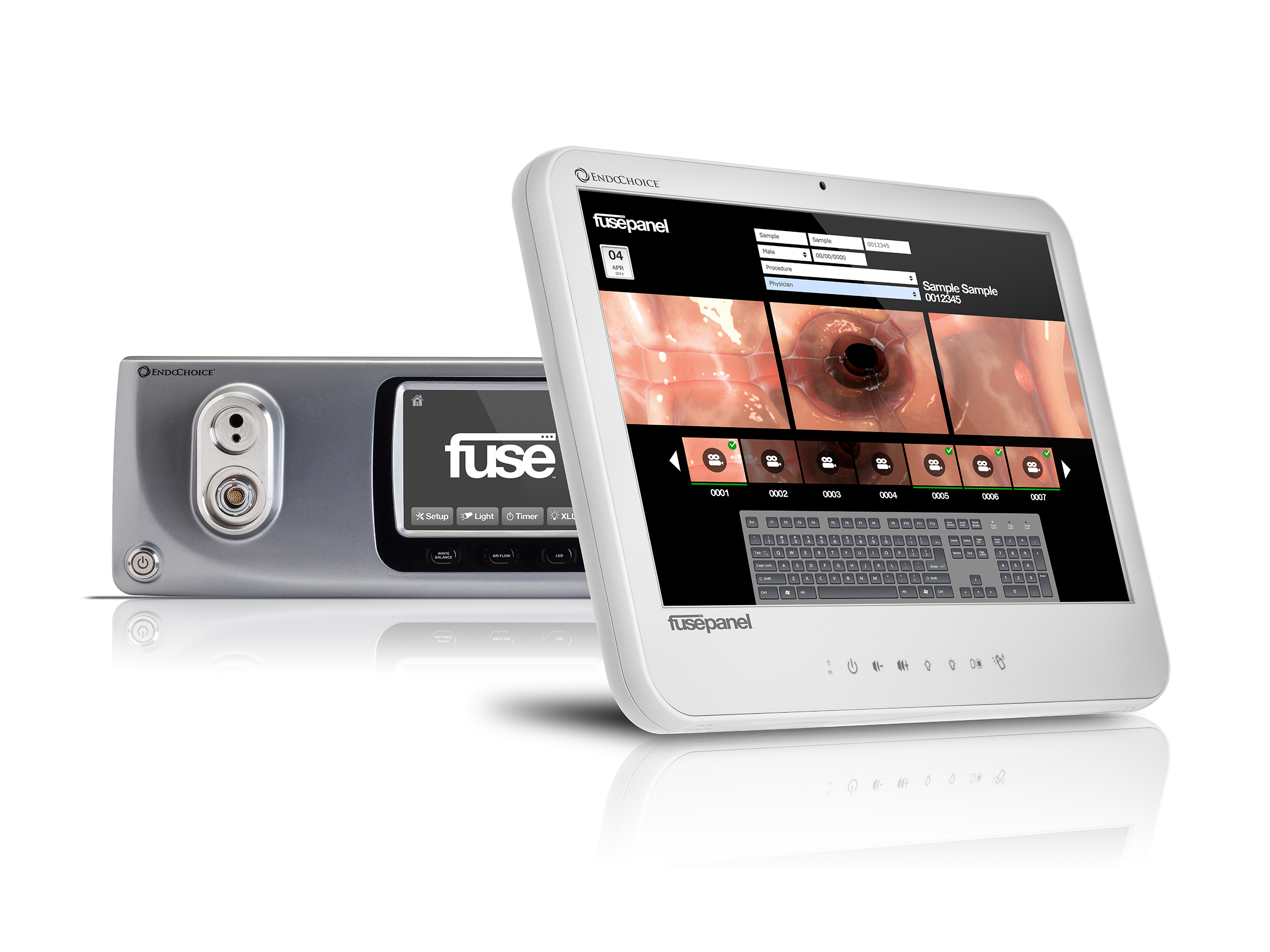

Fuse Panel: computer integrated into a 19 “monitor, elegant design, managed by proprietary software EndoChoice, which makes calculations and video images during endoscopic procedures. It ‘entirely touch screen, connected to the data processing system and image hospital. And ‘designed for professionals who require endoscopic environment in an easy and fast way to manage images and movies of endoscopic procedures and data for patients, doctors and types of procedures. must be used in conjunction with the processor Fuse Box. it is a innovative system for managing images shown to view, acquire, review, print, save, and search through images and movies, which are classified automatically according to the procedure.
Fuse Box: video processor which allows the regulation of the endoscopic image, especially shades of red and blue, the light intensity of the LEDs on the distal endoscope fed directly from a circuit inside of Fuse Box. The video output on the digital processor with DVI connectors, high-definition, with a maximum resolution of 1920×1080. It also allows the control of various external accessories that interface with the system.
3 HD Monitor: 19 “high-definition, medical, supported a special fork with integrated isolation transformers and positioned so as to allow a view of 330 °.
Shopping for Fuse Panel and Fuse Box: There are 3 different versions of the trolley, standard, deluxe and gold, integrating into the basket base drawers for accessories and carriage monitor holder.
Flexible endoscopes: They are designed for diagnostic viewing of the digestive tract, with 3 monitors for videocolonscopio and 2 for the videogastroscopio. The system also provides access to therapeutic interventions Church-operated using standard endoscopic instruments.
Item number (Fuse Panels, Fuse Box and monitor): EC-FSP-100-S
Item number (standard trolley): EC-ES-100P-ST

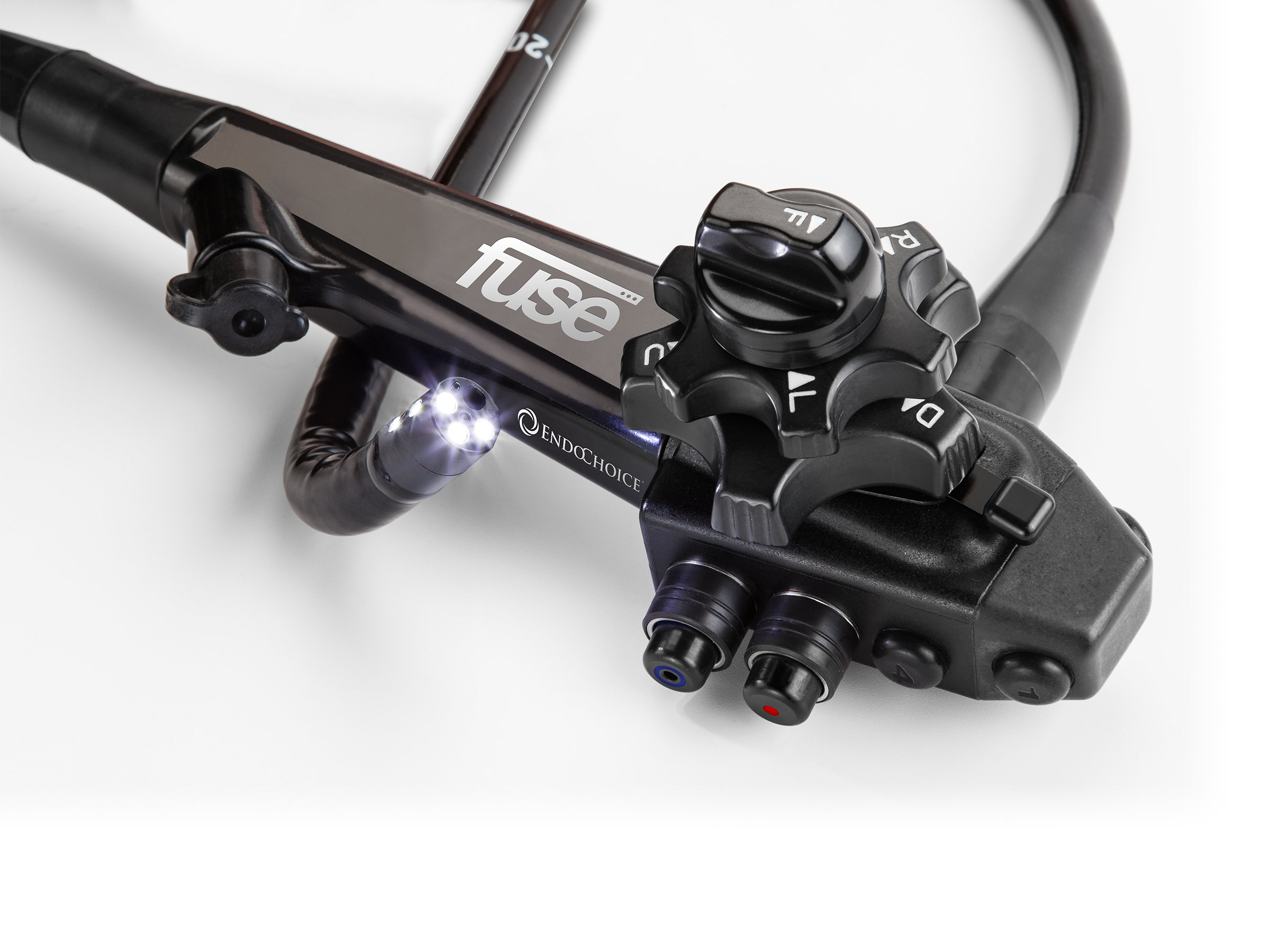

Colonoscope Fuse
Videocolonscopio 1C Fuse, combined with the processor Fuse Box is suitable for use in the lower digestive tract (anus, rectum, sigmoid colon and ileocecal valve).
The videocolonscopio has a wide field of view (330 ° – wide angle) guaranteed by the presence of the CCD 3 on the distal end of the endoscope, one positioned frontally and laterally to 90 ° 2, each served by a dedicated washing nozzle / insufflation. A special lens mounted on each CCD allows vision depth of 100mm.
The lighting of the distal end is provided by seven LEDs arranged frontally 3 and 2 for each side, ensuring a correct and innovative brightness during endoscopic procedures of the intestinal walls.
It has a feed tube with a diameter of 12,8mm, according to industry standards.
A working channel of 3.8mm diameter allows for functionality and compatibility with all endoscopic accessories currently in use, reusable and disposable. The channel biopsy has a front exit the distal end.
The handle of videocolonscopio has two knobs for the angles “UP-DOWN” (180 ° / 180 °) angles and “LEFT-RIGHT” (160 ° / 160 °) and 5 functional switches that allow the following functions:
– freeze
– Saving images
– Save video
– Electronic zoom (up to 2x)
– Conduct of trial time
The disinfection can be performed with all the endoscope washing standards present on the market, through dedicated connectors.
Item number: EC-FSC-3300ST
Gastroscope Fuse
Videogastroscopio 1G Fuse, combined with the processor Fuse Box is suitable for use in the upper digestive tract (esophagus, stomach, duodenum).
The videogastroscopio has a wide field of view (245 ° – wide angle) guaranteed by the presence of 2 CCD on the distal end of the endoscope, one positioned frontally and laterally to 1 90 °, both served by a specific washing nozzle / insufflation. A special lens mounted on each CCD allows vision depth of 100mm.
The lighting is provided by the distal 5 LEDs arranged 3 front and 2 side, guaranteeing a correct and innovative light during endoscopic procedures of the walls of the upper digestive tract.
It has a feed tube of 9.6mm in diameter, according to industry standards.
A working channel of 2.8 mm diameter allows functionality and compatibility with all endoscopic accessories currently in use, reusable and disposable. The channel biopsy has a front exit the distal end.
The handle of videogastroscopio has two knobs for the angles “UP-DOWN” (210 ° / 120 °) angles and “LEFT-RIGHT” (120 ° / 120 °) and 5 functional switches that allow the following functions:
– freeze
– Saving images
– Save video
– Electronic zoom (up to 2x)
– Conduct of trial time
The disinfection can be performed with all the endoscope washing standards present on the market, through dedicated connectors.
Item number: EC-FSG-2500ST

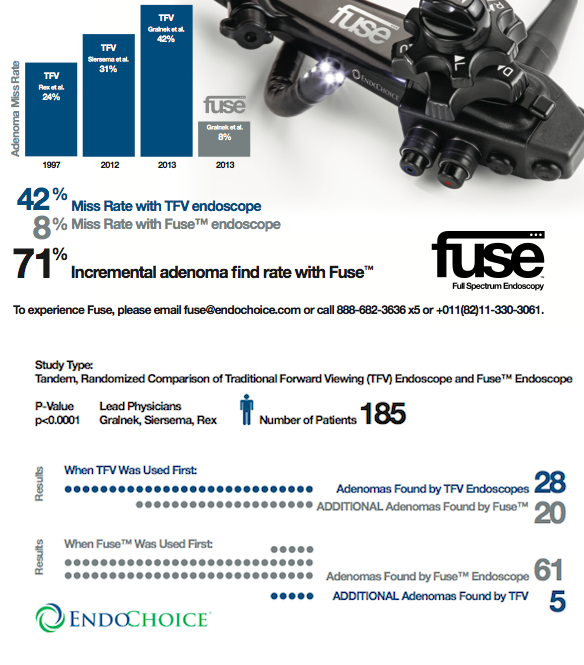

Abstract and validation studies
For more information on this study,
refer to the following:
Articles and studies:
